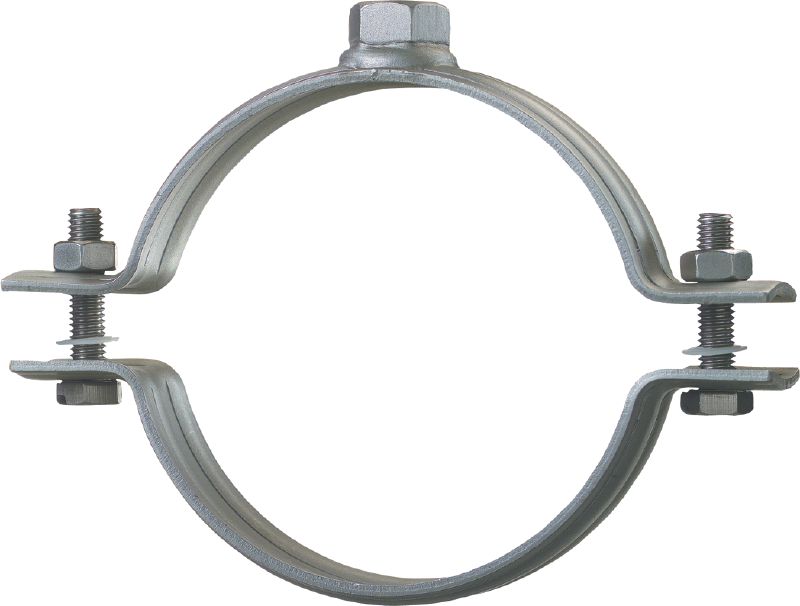

MP-MR Pipe clamp heavy-duty
New product
Standard
Item #r2751
Standard stainless steel pipe clamp without sound inlay for heavy-duty piping applications
- Thread connection - M: M10
- Maximum load - F: 3000 N
- Material composition: Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Features & Applications
Features & Applications
Features
- Increased rigidity due to profiled clamping band
- Solid connection head, welded all around
- Pipe ring with verified fire resistance as per DIN 4102, part 2
- High resistance to corrosion (A4 stainless steel)
Applications

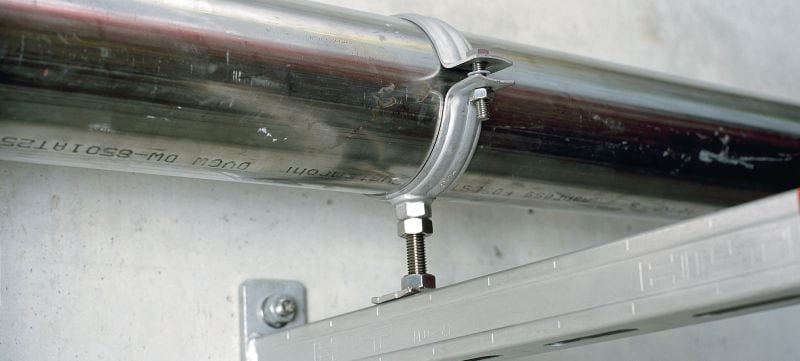

- Heavy-duty pipe installations up to 224 mm
- Heating and industry
- Mounting pipes in food industry and in water treatment
- Heavy-duty plumbing and heating applications
- Fastening of heavy-duty pipes in corrosive environments
