Pipe supports
Pipe clamps, pipe shoes, U-bolts, pipe hangers, straps and other pipe support elements for pipe structures in modular support systems
22 Products
Filter
- Description
- Galvanised pipe clamp with sound insulation and quick closure for high productivity in light-duty applications
- Noise reduction
- 18.5 dB (A)
- Temperature resistance
- -40 - 110 °C
- Material composition
- DC01 - DIN EN 10130
- Description
- Galvanised pipe clamp with sound insulation and quick closure for high productivity in light-duty applications
- Approvals
- ETA
- Noise reduction
- 17 dB (A)
- Temperature resistance
- -40 - 110 °C
- Description
- Galvanised pipe clamp with quick closure for high productivity in light-duty applications
- Approvals
- ETA
- Material composition
- DC01 - DIN EN 10130
- Surface finish
- Indoor Coated - Electro galvanised
- Description
- Galvanised pipe clamp with sound insulation for economical light/medium-duty applications
- Noise reduction
- 16 dB (A)
- Temperature resistance
- -40 - 110 °C
- Material composition
- SPCC-SD FB - Q/BQB402, DC01 – EN 10130
- Description
- Galvanised pipe clamp with sound insulation and quick closure for maximum productivity in medium-duty applications
- Approvals
- Acoustic insulation DIN 4109 inspected
- Noise reduction
- 19.4 dB (A)
- Temperature resistance
- -40 - 110 °C
- Description
- Galvanised pipe clamp with sound insulation for heavy-duty applications
- Noise reduction
- 19 dB (A)
- Temperature resistance
- -40 - 110 °C
- Material composition
- S235JRG - DIN EN 10025
- Description
- Galvanised pipe clamp with high temperature resistance inlay for heavy-duty applications
- Noise reduction
- 23 dB (A)
- Temperature resistance
- -60 - 200 °C
- Material composition
- S235JRG - DIN EN 10025
- Description
- Galvanised pipe clamp with sound insulation for extra heavy-duty applications
- Noise reduction
- 16 dB (A)
- Temperature resistance
- -50 - 120 °C
- Material composition
- DD11 - DIN EN 10111
- Description
- Galvanised pipe clamp without sound insulation for extra heavy-duty applications
- Material composition
- DD11 - DIN EN 10111
- Surface finish
- Indoor Coated - Electro galvanised
- Environmental conditions
- Dry indoor conditions (C1) Indoor with temporary condensation (C2)
- Description
- hot-dip galvanised (HDG) pipe clamp with sound insulation for economical light/medium-duty applications
- Noise reduction
- 16 dB (A)
- Temperature resistance
- -40 - 110 °C
- Material composition
- SPCC-SD FB - Q/BQB402, DC01 – EN 10130
- Description
- Stainless steel (A4) pipe clamp without sound insulation for light-duty applications
- Material composition
- Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
- Surface finish
- Outdoor Plus - Stainless Steel
- Environmental conditions
- Outdoor high pollution (C4 – high / C5)
- Description
- Stainless steel (A4) pipe clamp without sound insulation for heavy-duty applications
- Material composition
- Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
- Surface finish
- Outdoor Plus - Stainless Steel
- Environmental conditions
- Outdoor high pollution (C4 – high / C5)
- Description
- Standard galvanised clevis hanger for various piping applications
- Material composition
- Q235B - ASTM A36
- Surface finish
- Indoor Coated - Electro galvanised
- Environmental conditions
- Dry indoor conditions (C1) Indoor with temporary condensation (C2)
- Description
- Galvanised pipe clamp for high productivity in refrigeration and cold water applications with an insulation thickness of 19 mm
- Noise reduction
- 22.5 dB (A)
- Temperature resistance
- -40 - 105 °C
- Material composition
- Closed-cell polyurethane foam (elastomer), vapour-retardant PVC foil outside
- Description
- High-density refrigeration pipe clamp with quick closure for high productivity for heavy-duty in refrigeration applications
- Noise reduction
- 16 dB (A)
- Temperature resistance
- -50 - 110 °C
- Surface finish
- Indoor Coated - Electro galvanised
- Description

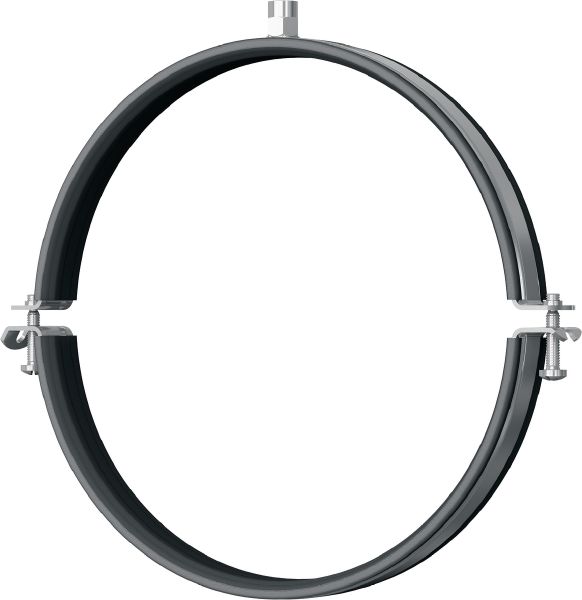

- Galvanised ventilation pipe clamp with sound insulation for high productivity in spiral duct applications
- Temperature resistance
- -40 - 110 °C
- Material composition
- DD11 - DIN EN 10111
- Surface finish
- Indoor Coated - Electro galvanised
- Description
- Galvanised sprinkler loop hanger with VdS, FM and UL approvals for fire sprinkler applications
- Material composition
- DX51D Z275 - DIN EN 10327
- Surface finish
- Indoor Coated - Electro galvanised
- Environmental conditions
- Dry indoor conditions (C1) Indoor with temporary condensation (C2)
- Description
- Galvanised sprinkler pipe clamp with VdS, FM and UL approvals for fire sprinkler applications
- Material composition
- S235JRG - DIN EN 10025
- Surface finish
- Indoor Coated - Electro galvanised
- Environmental conditions
- Dry indoor conditions (C1) Indoor with temporary condensation (C2)
- Description
- Galvanised sprinkler pipe clamp with FM approval for seismic bracing in fire sprinkler applications
- Material composition
- S275JR - EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
- Surface finish
- Indoor Coated - Electro galvanised
- Environmental conditions
- Dry indoor conditions (C1) Indoor with temporary condensation (C2)
- Description
- Galvanised u-bolt for universal piping applications
- Material composition
- Q235 or better steel
- Surface finish
- Indoor Coated - Electro galvanised
- Environmental conditions
- Dry indoor conditions (C1) Indoor with temporary condensation (C2)
- Description
- Outdoor coated (OC) u-bolt for universal piping applications
- Material composition
- Q235 or better steel
- Surface finish
- Outdoor Coated - HDG
- Environmental conditions
- Outdoor, low to moderate pollution (C3 / C4 - low)
- Description
- Outdoor coated (OC) pipe strap for universal piping applications
- Material composition
- DX51D-ZM300 - EN 10346:2015
- Surface finish
- Outdoor Coated - ZM
- Environmental conditions
- Outdoor, low to moderate pollution (C3 / C4 - low)
