SCANNING CONRETE TENDONS, TECH PARK II, PUNE INDIA

How we helped to check the safety of tendons

Hilti jobsite reference tech park II Pune India

THE CHALLENGE

Hilti jobsite reference tech park II Pune India

Tech Park II is a large IT park, equipped with high-tech support services covering an area of just under 100,000 square meters.

It was completed in 2014. But during the final installations, some tendons were drilled into, where drilling wasn’t permitted.

The architect and developers therefore decided to check the safety of the structure and integrity of the drilled into tendons.

OUR HILTI SOLUTION

Our Hilti PS 1000 X-Scan Detection tool was chosen for the job.

First, the X-Scan was used to detect the exact location of the tendons and to find its location and approximate depth.

This scan data was then compared with the depth of the drilled holes, to see if the tendon was at the same depth and if it were possible that the tendon could have been hit.

The results showed that none of the tendons had been damaged during the drilling and the structure was safe.

This was a great non-destructive way to determine the safety of the structure, saving time and preventing delay for the project.

PRODUCTS USED IN THIS SOLUTION

  • Hilti PS 1000 X-Scan detection system

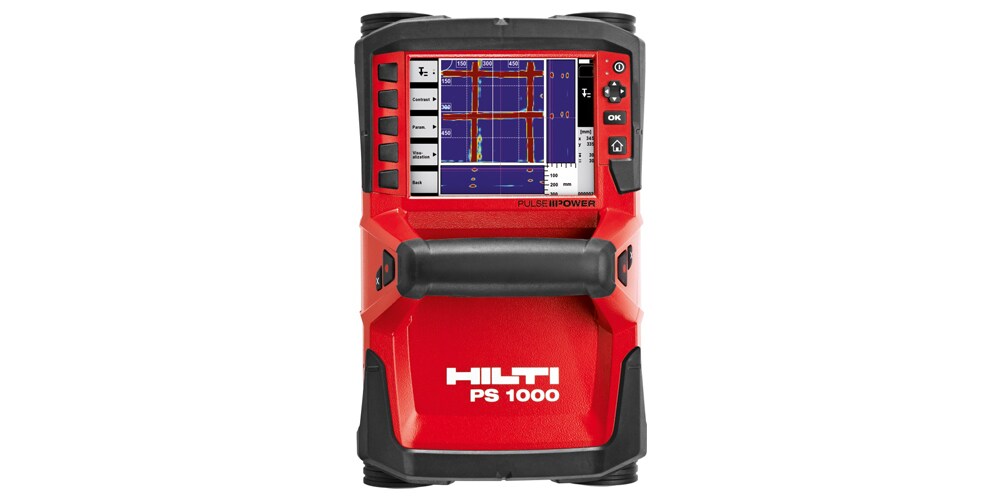

    HILTI PS 1000 X-SCAN SYSTEM

    Our Hilti PS 1000 X-Scan can scan wide areas of concrete and detect objects in multiple layers of concrete.
