HOW TO DESIGN FOR CRACKED CONCRETE

Choosing the right anchor connection for cracked concrete

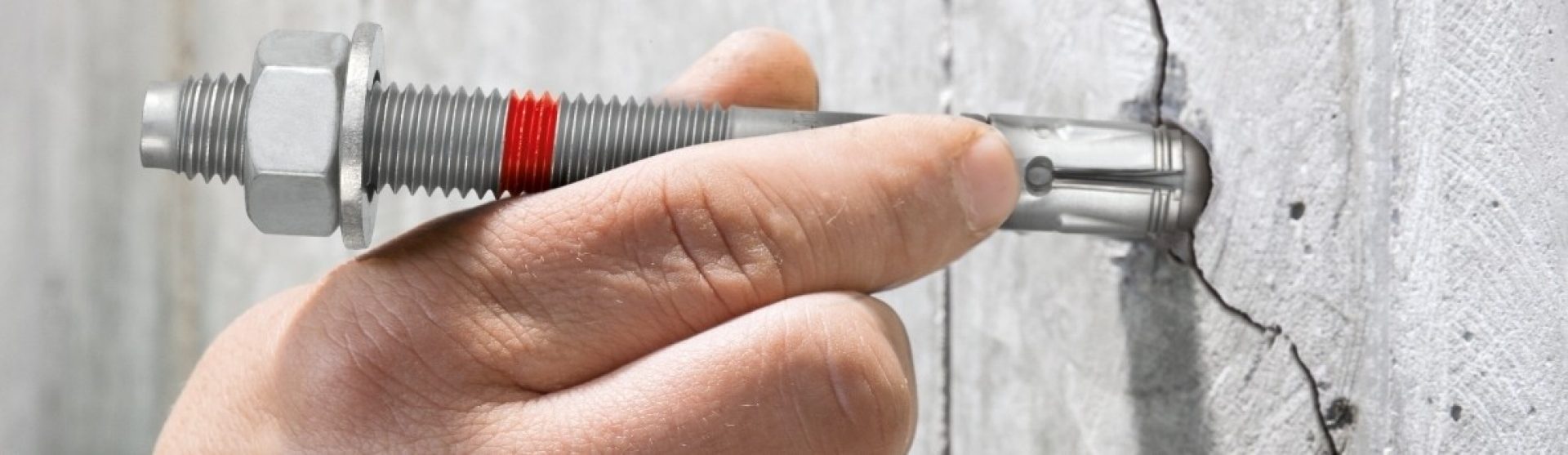

Hilti HST3 cracked concrete design

Concrete can often crack due to age, temperature and loads.

So when you design anchor systems for concrete, it’s important to consider the condition of the concrete you’re working with.

Anchors are particularly affected when concrete cracks, because the cracks in the concrete usually run through where anchors are placed. This can significantly affect anchor resistance.

So at Hilti we’ve developed anchors specifically designed for cracked concrete.

Planning ahead and using anchors, which are specially designed for cracked concrete can help to make structures safe and avoid costly repairs.

HOW WE CAN HELP TO DESIGN FOR CRACKED CONCRETE

At Hilti we can also help you with your design, through our range of Hilti design services and Hilti PROFIS software.

ASK AN ENGINEER

Hilti PROFIS Anchor software

Hilti PROFIS Anchor and Hilti PROFIS 3 design software

Our Hilti PROFIS Anchor and PROFIS 3 design software include a feature to design your anchor systems specifically for cracked concrete.

More information
Hilti HST3 stud anchor

Seismic Design

Anchor design for seismic areas needs its own specific design solutions. Find out more from our Hilti Seismic Design Guidelines.

More information

OUR ENGINEERING DESIGN SERVICE

Our expert Hilti design engineers work with our customers all over the world, onsite, online and on the phone. They can help you to create your design, or draw up a design for you. Just contact your local Hilti team for more information.
