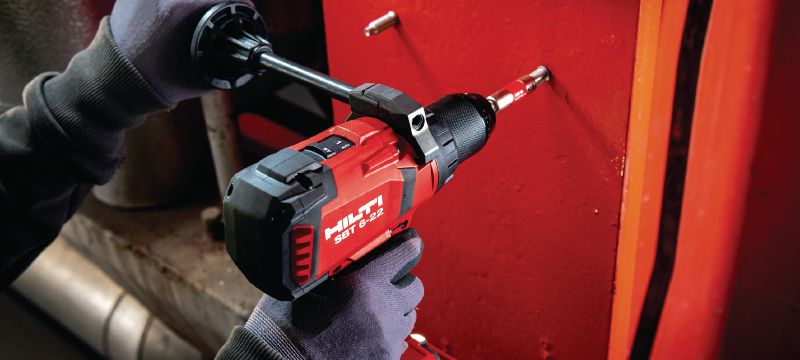

SBT 6-22 Cordless drill driver
New productItem #r17291558
Steel drilling and driving tool for predrilling accurate holes and installing S-BT screw-in studs (Nuron battery platform)
- RPM: 2000 rpm
- Max. torque: 85 Nm
- Chuck type: Keyless chuck
Features & Applications
Features & Applications
Features
- All you need to install S-BT screw-in studs – SBT 6-22 is Hilti’s specialised metal drill with the high torque and extreme durability needed for fastening on steel

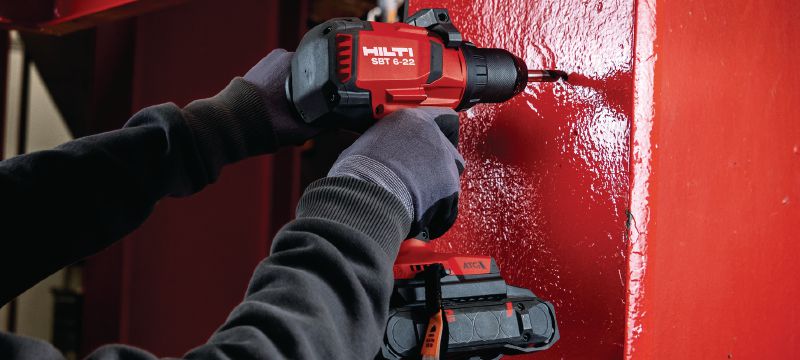

- Easier precision drilling – Drill Assist feature gives feedback to user when the tapered drill bit has reached the intended depth for S-BT studs
- No calibration needed – the tool stops automatically once the preset embedment depth has been reached, making correct stud installation quicker and easier

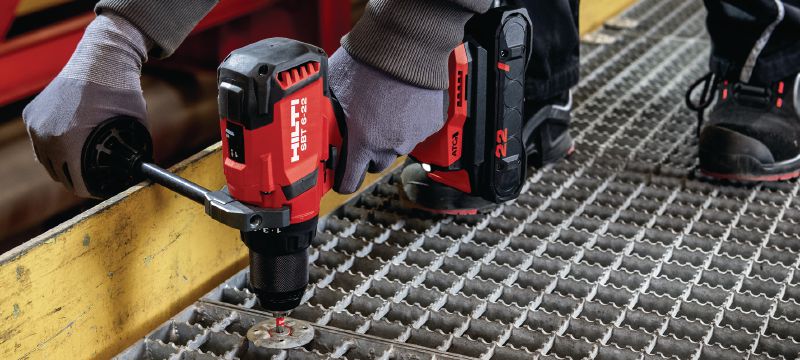

- Powerful brushless motor – delivering enough torque for all steps of fastening on steel, from drilling the pilot holes to tightening the grating discs or nuts
- On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries and a range of services to keep you productive, today and tomorrow
Applications
- All-in-one metal drill for installing S-BT fasteners – from drilling highly accurate pilot holes to tightening the fastener

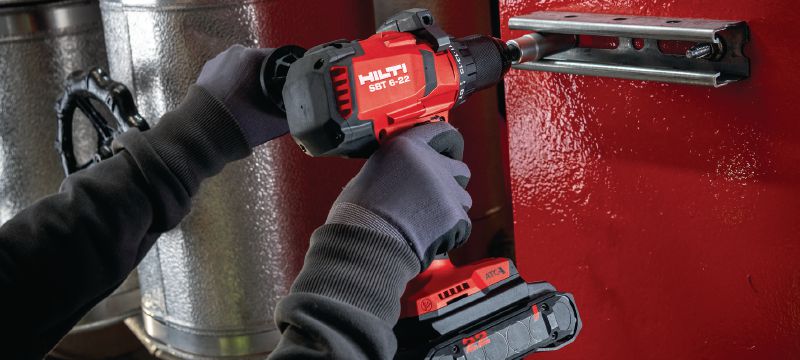

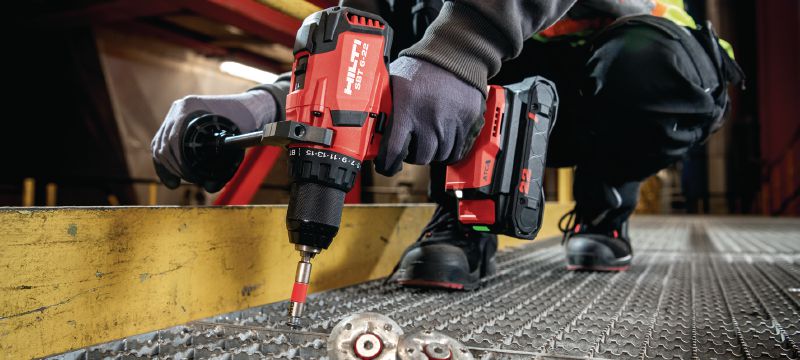

- Fastening to steel using S-BT screw-in studs – including multipurpose fasteners, grating discs, cable trays and struts
- Drilling with high torque and speed in diameters up to 13 mm in metal
- Also suitable for drilling with auger and spade bits up to 32 mm diameter in wood, and cutting with hole saws up to 125 mm diameter
- Screw-in stud system available in various corrosion resistance levels available, including stainless steel
For approval or certificate information, please see individual items.
Product Variants & Sets
Technical Data
Documents & Videos
Consulting & Support
Hilti’s Fastening on steel technology
Making fastening on steel easier, faster and safer
Challenges associated with traditional methods
Welding
- Damage to paint work
- Preparation & rework of coated steel
- Certified welders & fire watch needed
- External power source needed
- Time consuming & Weather dependent
- Permanent method
Clamping
- Access from 2 sides needed
- Limits regarding fastening directions: Allows horizontal fastening only
- Limited vibration resistance: More maintenance required
- Clamping scratches surface: Rework of coated steel required
Through-bolting
- Through-penetration of steel flange: affects steel load capacity
- Access from 2 sides needed
- Rework of coated steel required: Longer fastening process
- Long and tedious process: high waste of drill bits
Hilti’s Fastening on Steel

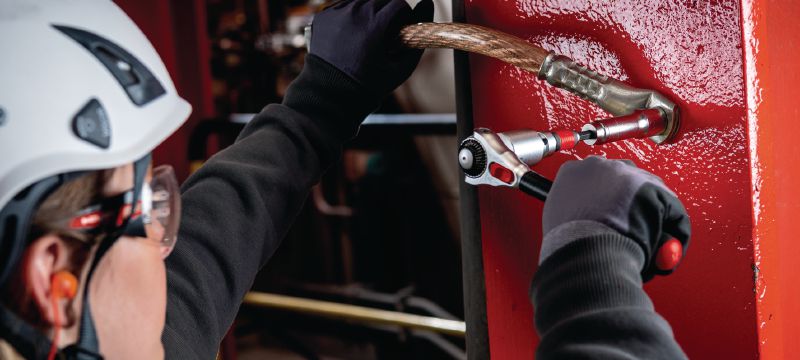

Hilti’s Fastening on Steel (FOS) products are designed and engineered solutions to cater to all your secondary and tertiary connections need where the base materials are Steel / Aluminum. Some of the common industrial applications wherein our customers are fast moving to FOS are grating fixings, fastening of channels / junction boxes / equipment fixing etc., fastening on PFP coated steels and electrical connections.
Can a Hilti stud lift a pickup truck?
Watch as the Hilti crew prepares a pickup truck to be lifted with one X-BT-MR threaded stud. When it comes to strength, there is nothing tiny about the X-BT-MR threaded stud.
