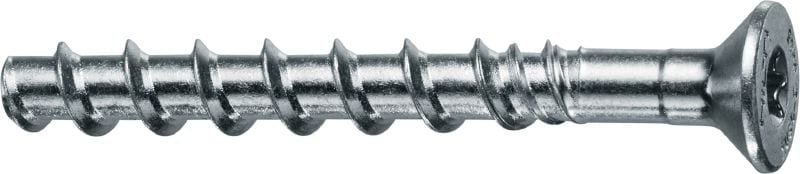

HUS4-C screw anchor
New productItem #r12910873
High-performing countersunk head screw anchor for fastening to concrete (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Countersunk Torx
- Approvals / test reports: ETA, Fire, Seismic
Features & Applications
Features & Applications
Features
- Up to 2x faster than wedge anchors – fewer work steps help you save time on every single fastening
- Quicker and easier to install – no cleaning, no high-accuracy torque wrench and no hammering required
- Improved setting with less blocking in the toughest concrete – thanks to smaller core diameter and new thread design
- Extensive approvals – ETA (EAD 330232) with seismic

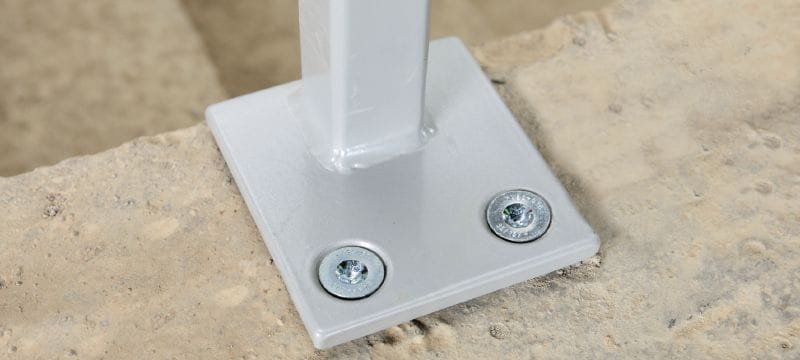

- Perfect for through-fastening – countersunk head to sit flush with the baseplate surface
Applications
- Fastening non-structural baseplates, platforms, staircases, balconies and industrial equipment to concrete
- Technical data available for fastening to hollow core slabs, lightweight concrete, masonry and aerated concrete, as well as fire resistance and stand-off installation with grout
- Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use
For approval or certificate information, please see individual items.
